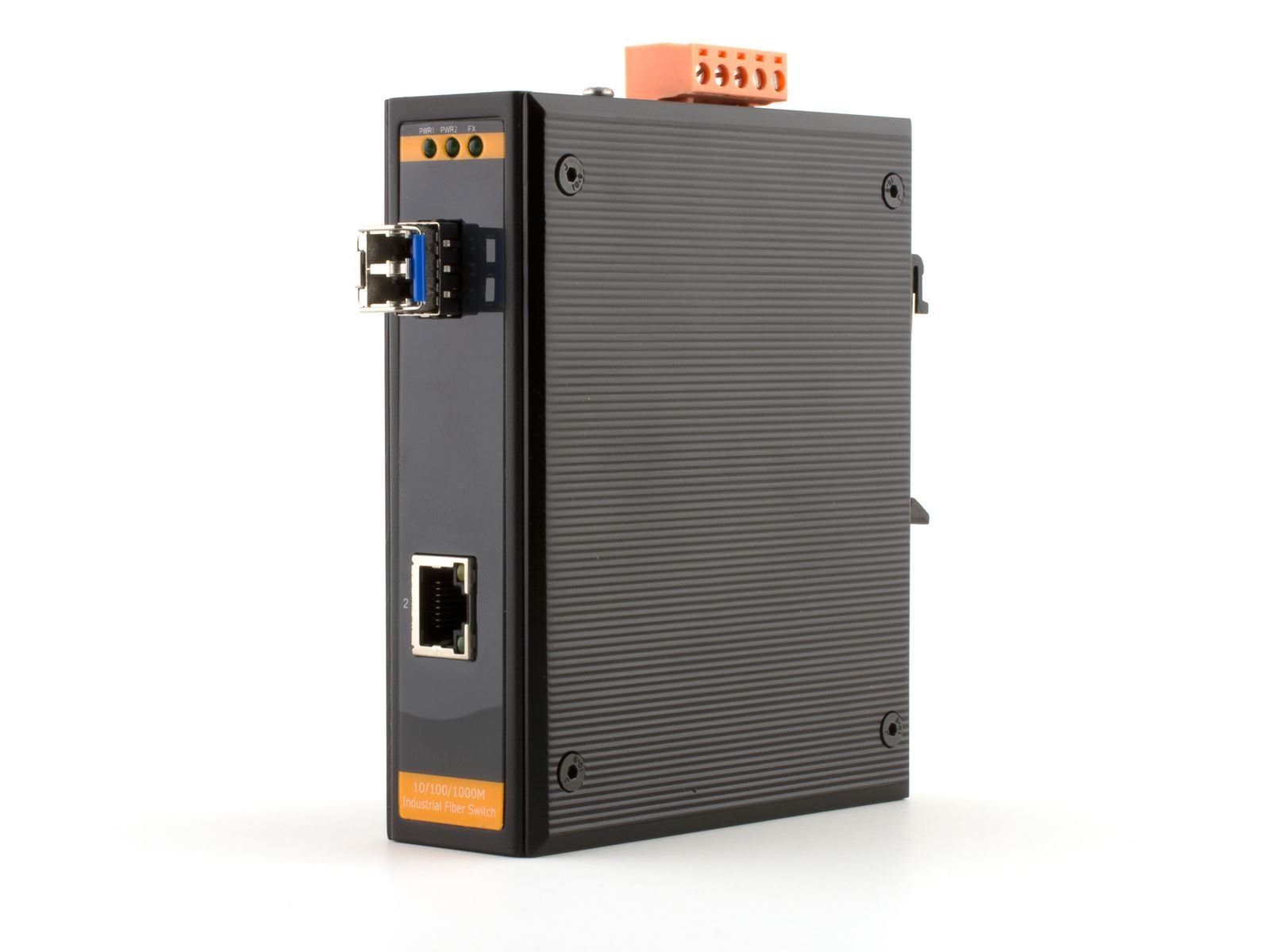

Industrial Gigabit Fiber Media Converter - 1000Base-LX, LC Singlemode, 20km, 1310nm, 1 Port
This Industrial Fiber Transceiver / Media Converter is designed to convert data signal between 10/100/1000Base-T and 1000Base-LX Gigabit Ethernet. Maximum transmission distance 20 kilometers over duplex singlemode fiber (9/125 micron) @ 1310nm. Duplex LC Connector.

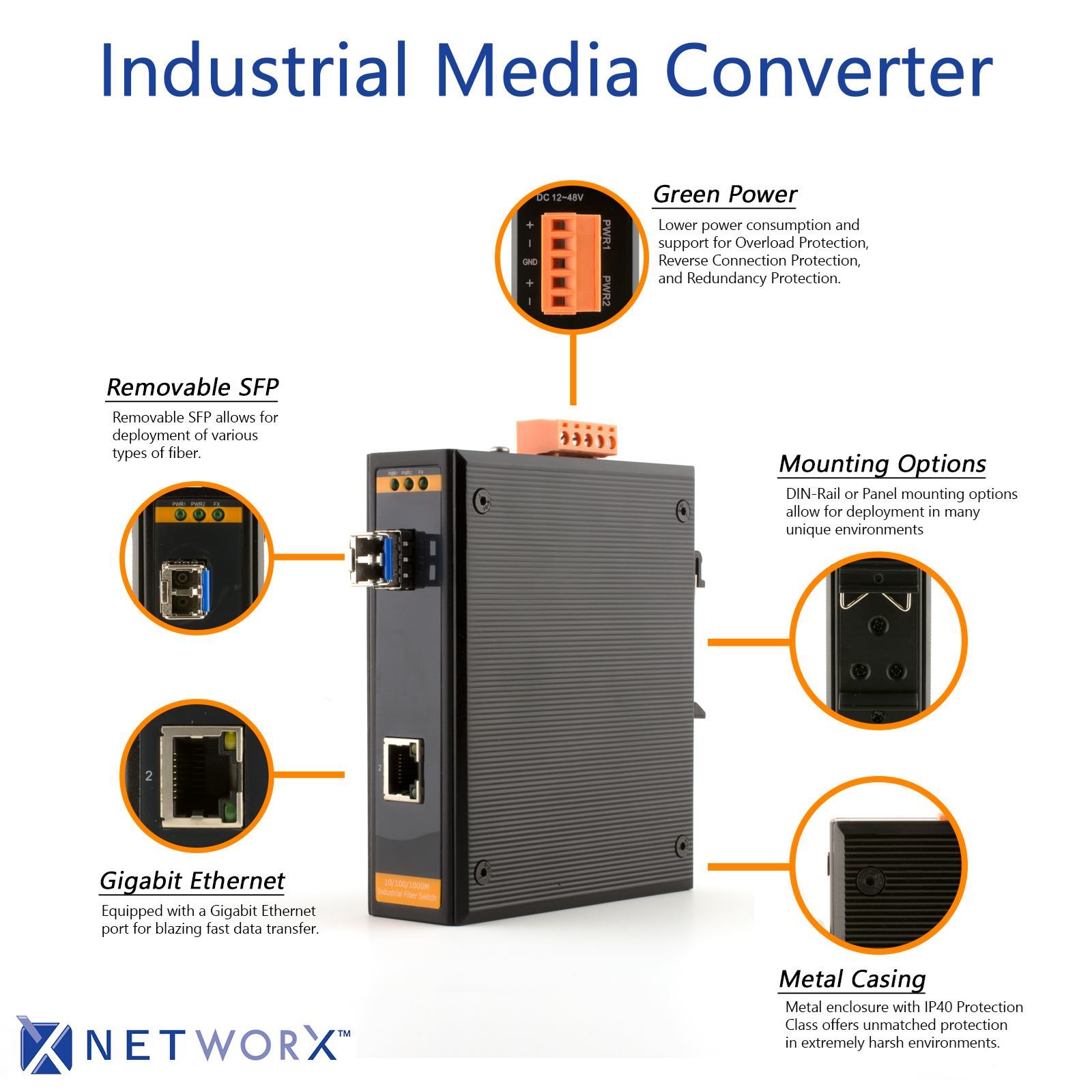

The Industrial Media Converter complies with IEEE 802.3z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100/1000Base-T and 1000Base-LX Gigabit Ethernet. It supports 10/100/1000Base-T and 1000Base-LX applications. The data signal converted by such high performance media converter can be transmitted up to 80Km maximum by fiber-optical cable.

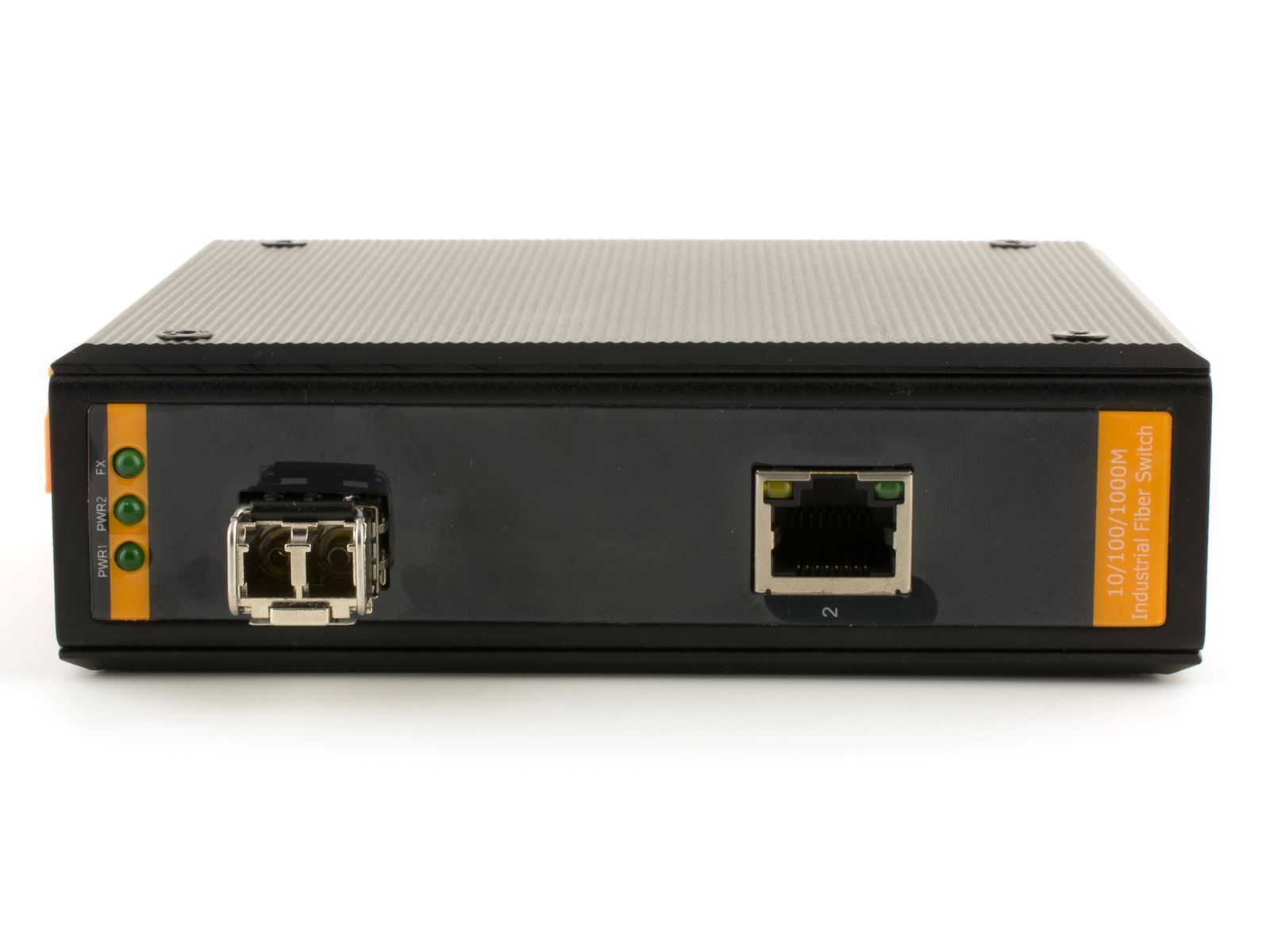

The Converter is equipped with single fiber optic connectors (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jack and one external pwer supply receptacle. Three LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.

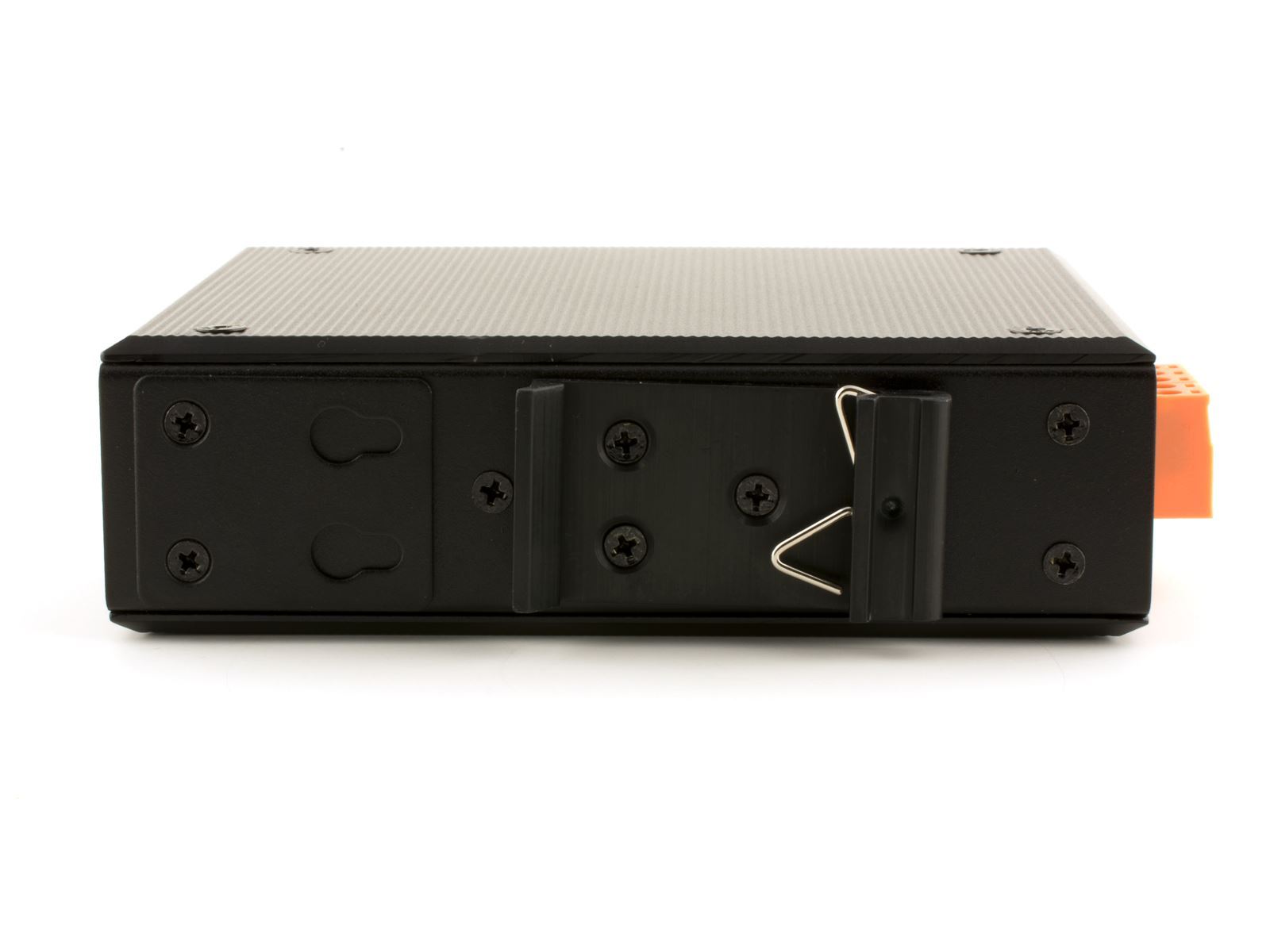

It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, or DIN-Rail mounted applications where multiple media converters can be attached to a DIN-Rail.
This Industrial Media Converter meets the following Industry Standards:
EMI: FCC/CE/LVD/EMC
EMS:
IEC61000-4-2 (ESD): +/-8kV (contact), +/-15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: +/-4kV;Data Port: +/-2kV
IEC61000-4-5 (Surge): Power Port: +/-2kV/DM, +/-4kV/CM; Data Port: +/-2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V(150kHz-80MHz)
IEC61000-4-16 (Common mode conduction):30V (cont.), 300V (1s)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note: Mode Conditioning cable recommended if running over legacy Multimode Backbone
- Data Rate (Mbps) - 10/100/1000M with Auto-Negotiation
- Mode - UTP Half or Full Duplex
- Optical wavelength (nm) - 1310
- Fiber Type (micron) - Single Mode 9/125
- Connector Type - One UTP, Two LC Fiber
- Max Distance - 20 km

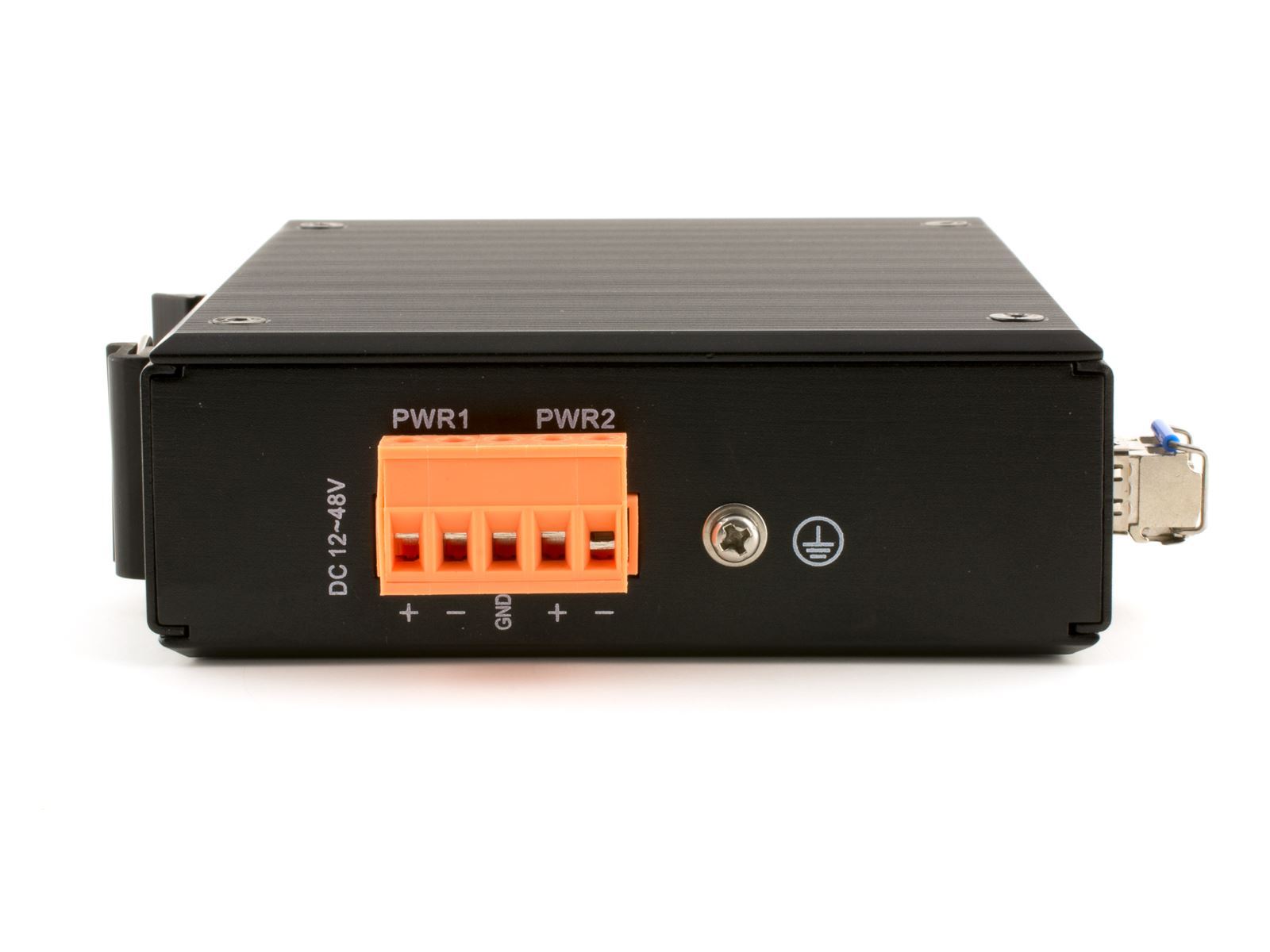

- Power Supply - No Power Supply Included
- Optical Output Power - -10 to -6 dBm
- Optical Receiver Sensitivity - -23 dBm
- Saturability - ≥ -3 dBm
